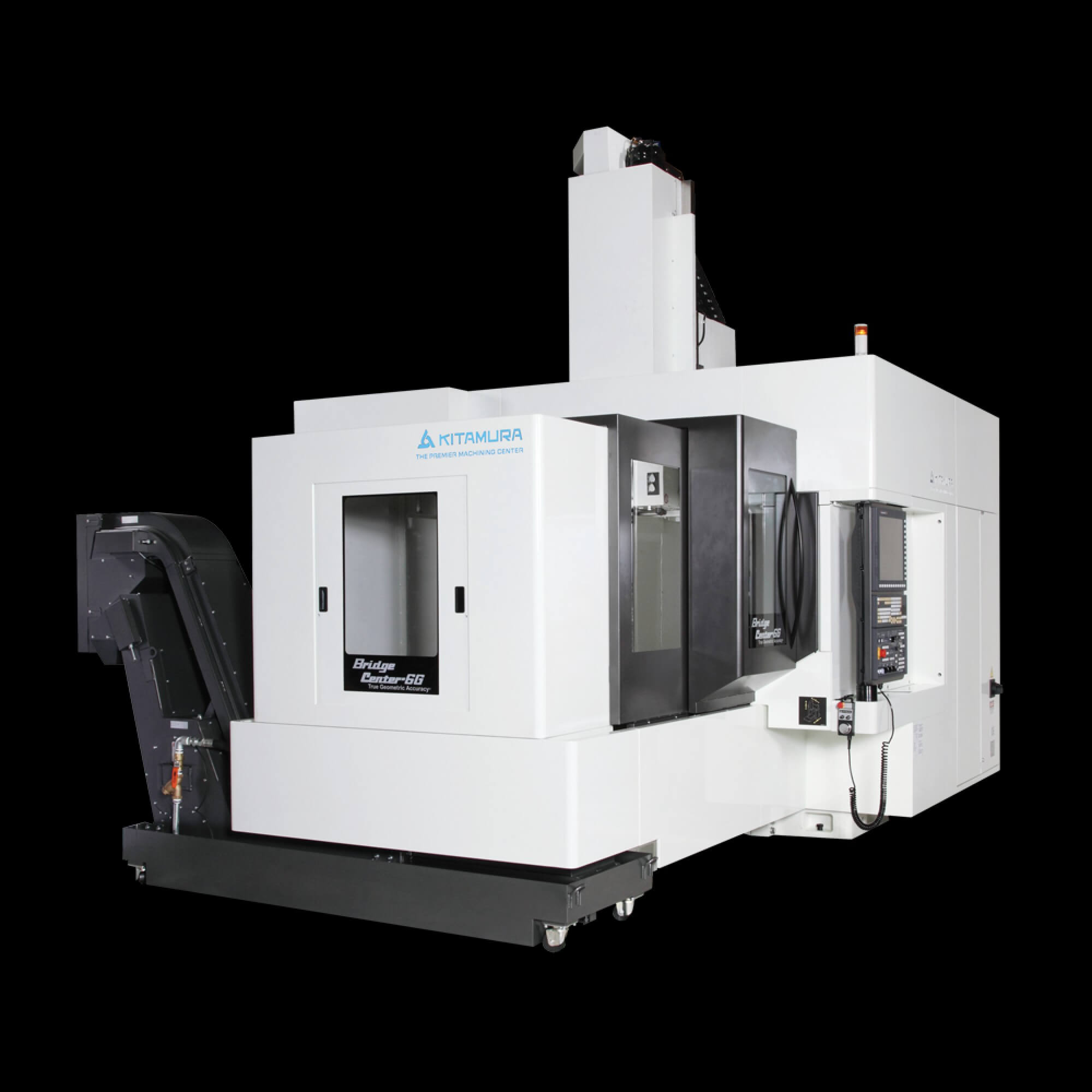

Bridgecenter-6G#40

Double Column Machining Center
Specifications

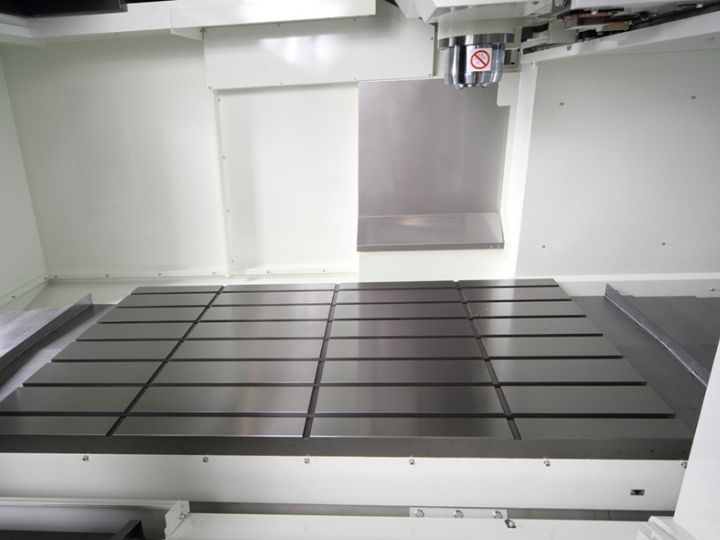

Table Size: 35.4” x 70.9” (900 x 1,800mm)
Travel (X, Y, Z): 60.2” x 43.1” x 28.0”
(1,530 x 1,095 x 710mm)
Spindle Taper: NST No. 40
Spindle Speed: 20~20,000rpm Gear Drive, 4-Step
Tool Storage Capacity: 40 Pcs. (60, 80 Opt.)
Tool Change Time (T-T/C-C): 6.6 Sec. /12 Sec.
Rapid Feed (X, Y, Z): 945ipm (24m/min)
Power Requirement: 35KVA
Features

• Ideal for parts requiring heavier cutting loads and higher levels of precision and accuracy.  Excellent for Die/Mold applications.

• Positioning Accuracy: ±0.000078”/Full Stroke, Repeatability: ±0.000039”

• Rigid Meehanite cast iron construction with induction hardened solid box ways

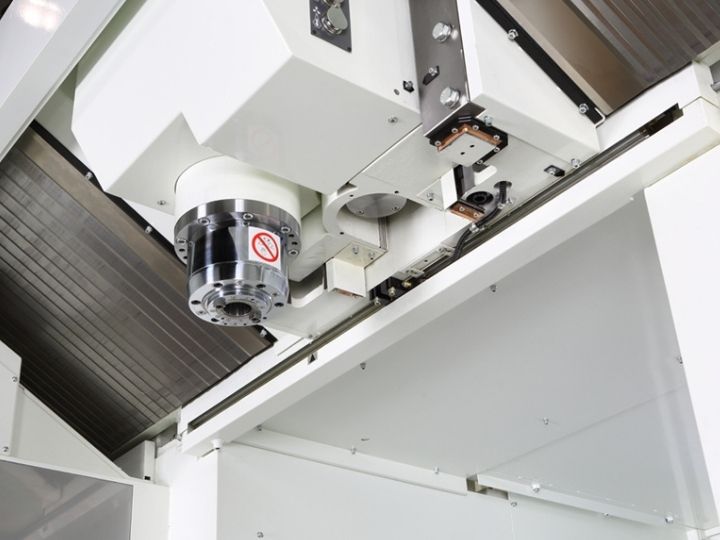

• #40, high speed, heavy duty 20,000rpm, 4-Step Geared, Dual Contact Spindle

• Double column design provides expansive work envelope and superior rigidity

• Linear scale feedback in X, Y, Z axes

• Space saving footprint takes up only 166 total square feet

• 6,600Lb table capacity
