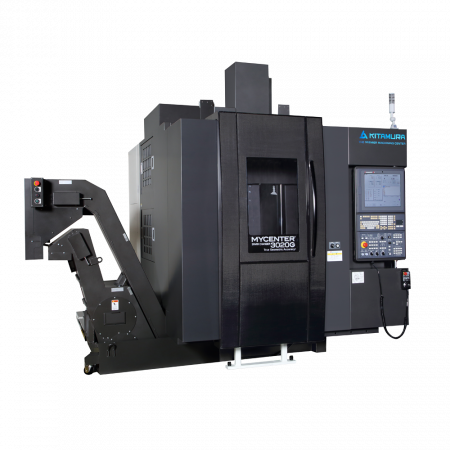

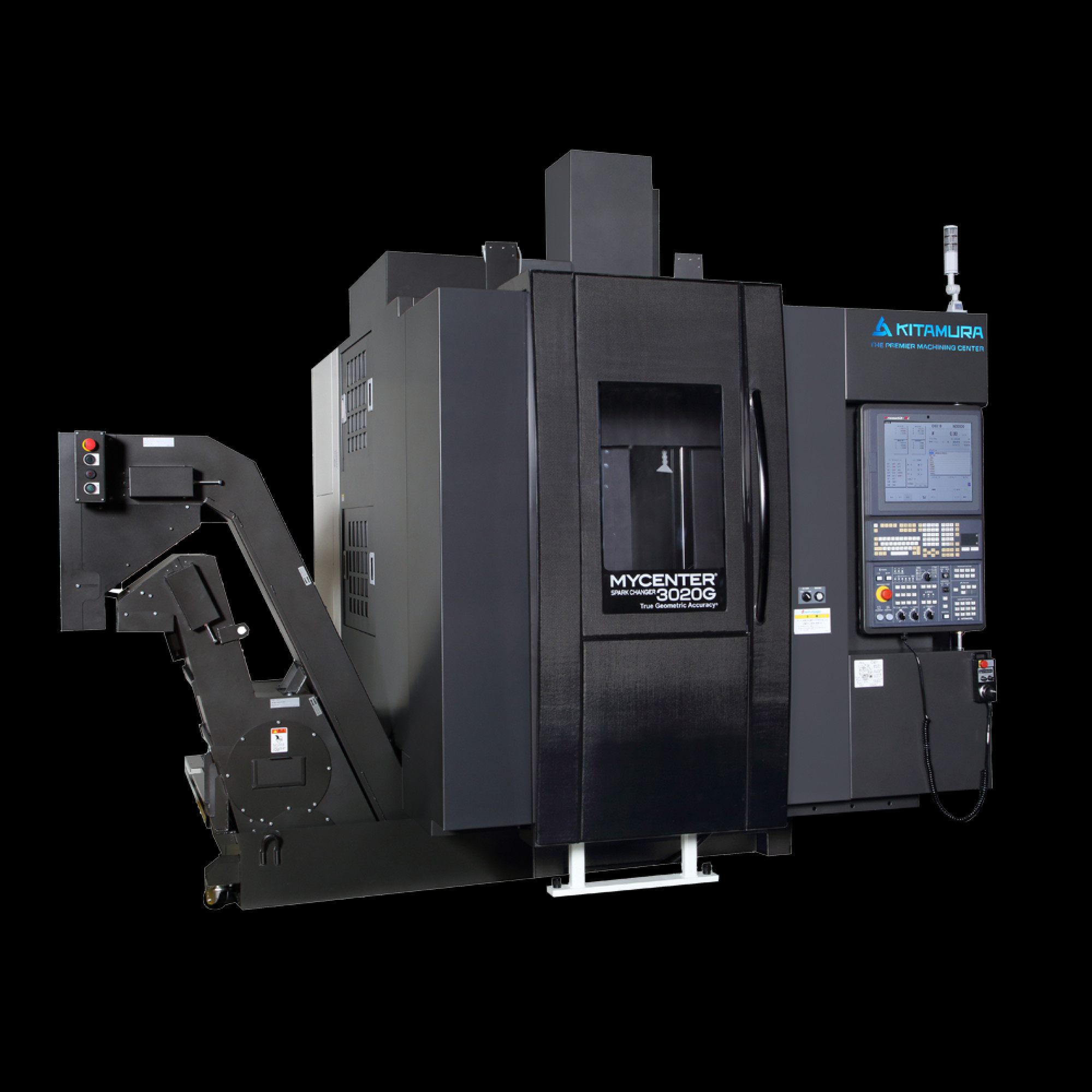

Mycenter-3XiG “Sparkchanger”

Vertical Machining Center
Specifications
Table Size: 16.1” x 34.0” (410 x 864mm)
Travel (X, Y, Z): 30” x 18” x 18.1” (760 x 455 x 460mm)
Spindle Taper: NST No. 40
Spindle Speed: 20~20,000rpm,  Gear Drive, 4-Step
Tool Storage Capacity: 30Pcs.
Tool Change Time (T-T/C-C): 1.6 Sec. /3.3 Sec.
Rapid Feed (X, Y, Z): 1,969ipm (50m/min) X/Y x 1,417ipm (36m/min) Z
Power Requirement: 30KVA
Features

• Enhanced control capability with Kitamura’s feature packed Arumatik-Mi control

• Ideal for heavy duty cutting of molds to the high-speed accuracy cutting for high precision parts

• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”

• Rigid Meehanite cast iron construction with solid box ways

• Versatile 15HP AC, 15,000rpm direct drive, dual contact spindle

• Plumbed and ready for coolant thru the spindle – can be added in field

• 2,800 block/sec processing speeds for smoother and faster machining of complex work pieces

• Flexibility with the ability to add 4th/5th axis in the field
