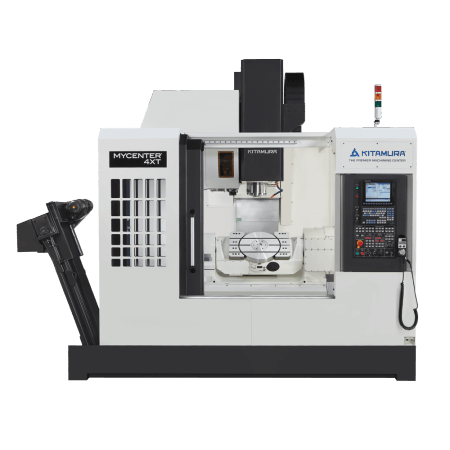

Mycenter-4XT

5-Axis Machining Center
Specifications
Rotary Table Size: 15.75" Diameter (400mm)
w/Full Table Length: 14.37" x 23.62" (365 x 600mm)
Travel (X, Y, Z): 31.50” x 24.02” x 20.08”
(800 x 610 x 510mm)
Spindle Taper: NST No. 40
Spindle Speed: 15,000rpm
Tool Storage Capacity: 30 Pcs.
Tool Change Time
(T-T/C-C):
2.5 Sec. /7.0 Sec.
Rapid Feed (X, Y, Z): 1,417ipm (36m/min) X/Y/Z
Power Requirement: 35KVA
Features

• Built-in 4th/5th Axis Trunnion Table

• Rigid solid box guideways incorporate a unique 4-slideway base construction for optimum rigidity

• High speed rapids of 1417ipm (X, Y & Z) boosts work throughput

• High speed 15,000rpm, 35HP, Dual Contact Spindle

• Standard base wash system, internal chip augers and scraper type chip conveyor

• Plumbed for coolant thru the spindle (220psi/1000psi option)

• Affordably priced and feature packed!
