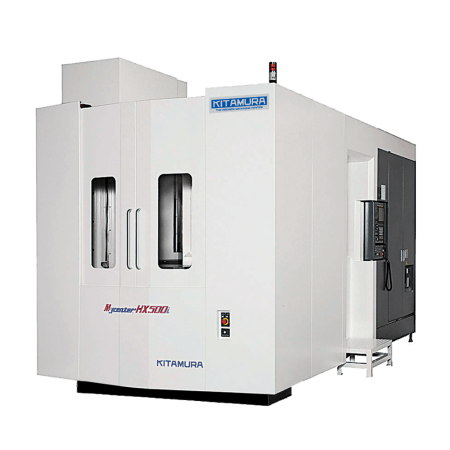

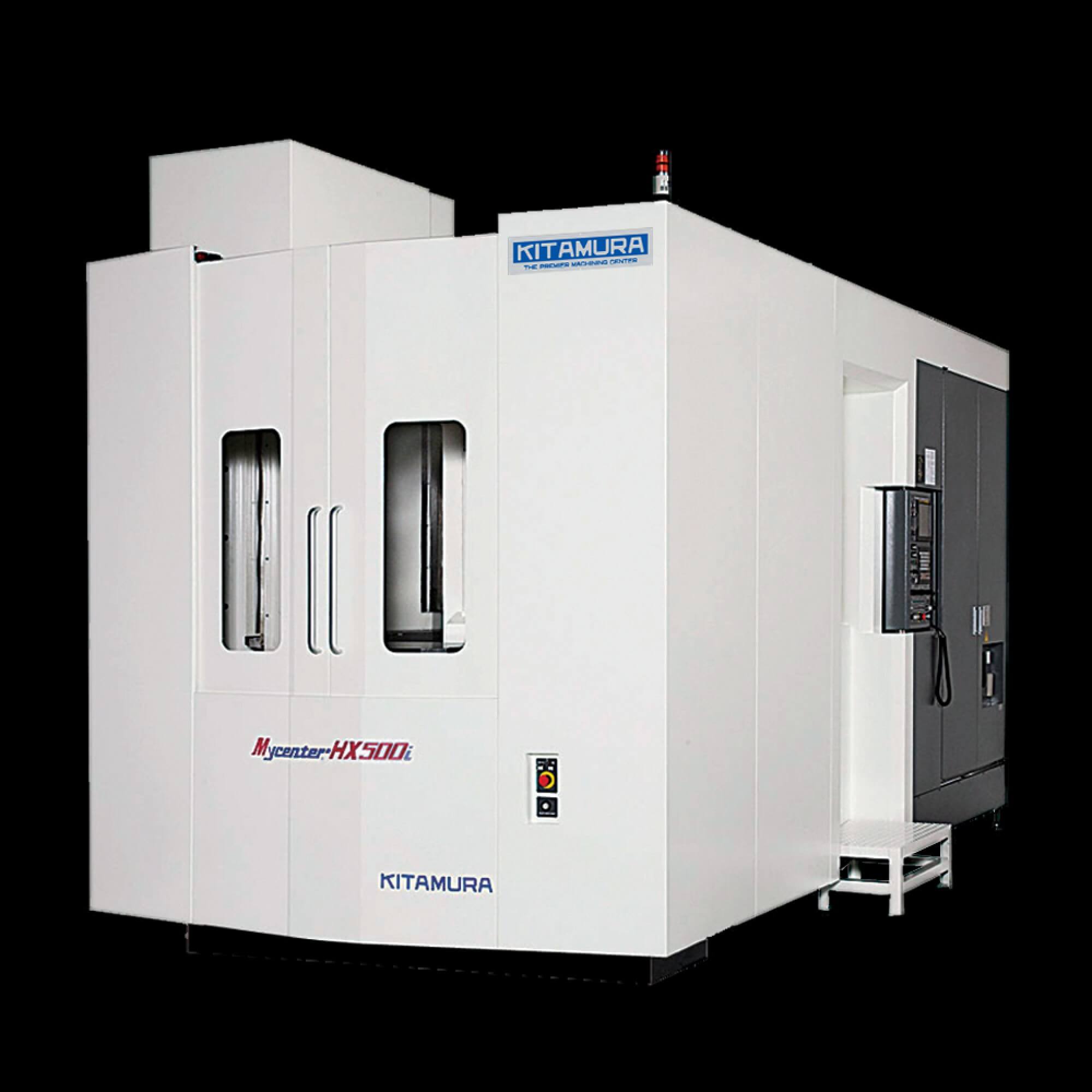

Mycenter-HX500iTGA

Horizontal Machining Center
Specifications
Table Size: 19.7” x 19.7” (500 x 500mm)
Travel (X, Y, Z): 34.3” x 28” x 26”
(870 x 710 x 660mm)
Spindle Taper: NST No. 50
Spindle Speed: 35~12,000rpm (8,000rpm Opt.)  – Gear Drive, 4-Step
Tool Storage Capacity: 50 Pcs. (100,150,200 Opt.)
Tool Change Time
(T-T/C-C):
2.5 sec. /5.5 sec.
Rapid Feed (X,Y,Z)
Rapid Feed (B)
1,969ipm (50m/min)
12,000deg./min.
Power Requirement: 55KVA
Features

• Highest grade meehanite cast iron construction with solid box ways

• Full 4th axis rotary table with high resolution rotary scale

• Double decker style chip conveyor & internal hinge belt for exceptional chip evacuation

• 12,000rpm, gear driven dual contact spindle generates strong low end torque with fine finish capabilities

• Patented twin ballscrew/twin servo motor driven axis drive system

• Extra-large work envelope. Work piece diameter 31.5” x height 42.9”

• 2-station APC and 50 tool ATC – Both expandable in the field
