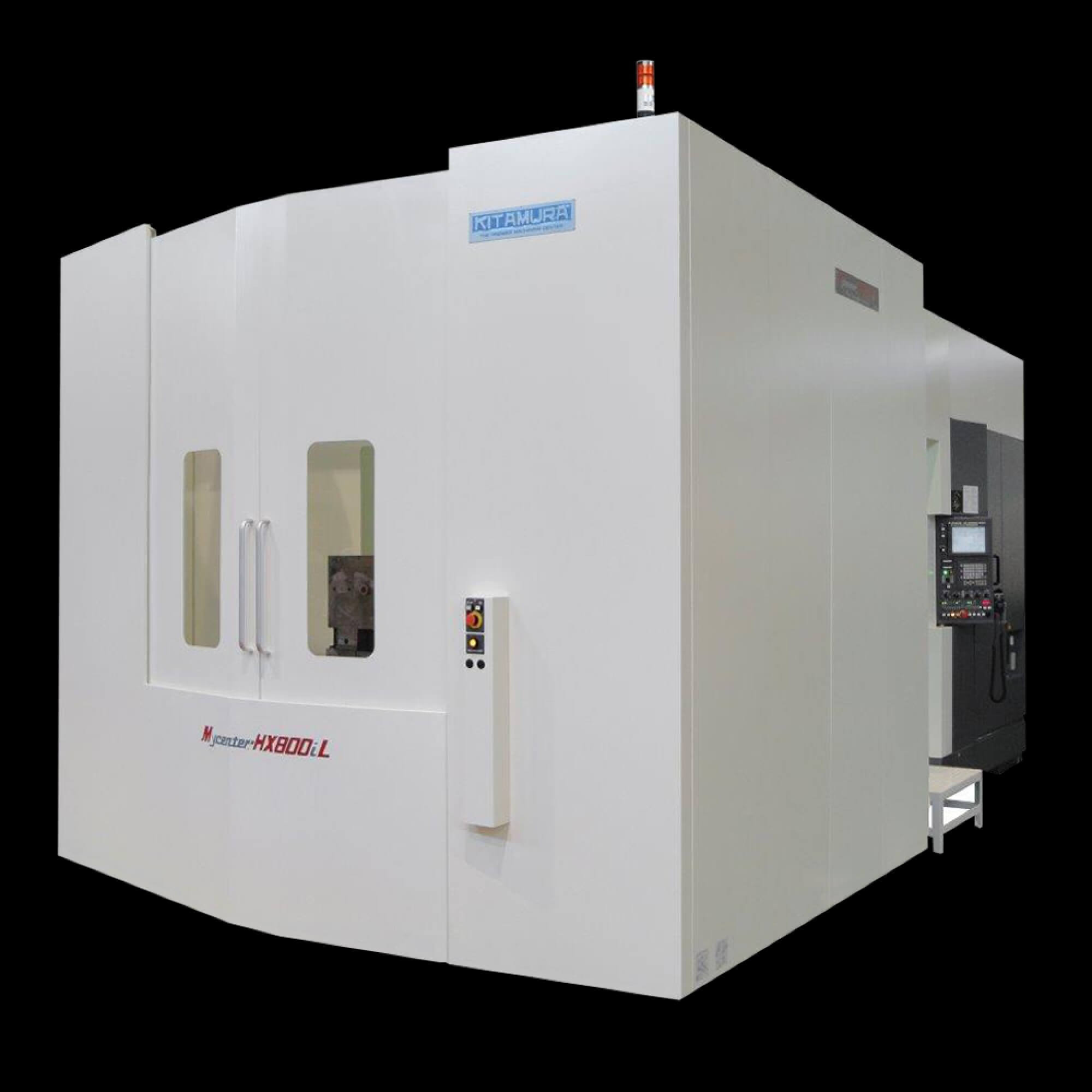

Mycenter-HX800iLTGA

Horizontal Machining Center
Specifications
Table Size: 31.5” x 31.5” (800 x 800mm)
Travel (X, Y, Z): 55.11” x 49.21” x 52.16”
(1,400 x 1,250 x 1,325mm)
Spindle Taper: NST No. 50
Spindle Speed: 35~12,000rpm (20~8,000rpm Opt.) – Gear Drive, 4-Step
Tool Storage Capacity: 50 Pcs. (100,150,200 Opt.)
Tool Change Time
(T-T/C-C):
3.0 sec. /7.0 sec.
Rapid Feed (X,Y,Z)
Rapid Feed (B):
1969ipm (50m/min)
8,000deg/min
Power Requirement: 55KVA
Features

• Ideal for heavy duty machining of large size work pieces

• Highest grade Meehanite cast construction with solid box ways

• Field expandable 2-station APC saves on set-up time while machining

• Fastest rapid feed rate in its class – 1,969ipm

• Linear scale feedback on X, Y, Z axes

• Patented twin ballscrew/twin servo motor driven axis drive system

• Full 4th axis rotary table with high resolution rotary scale
