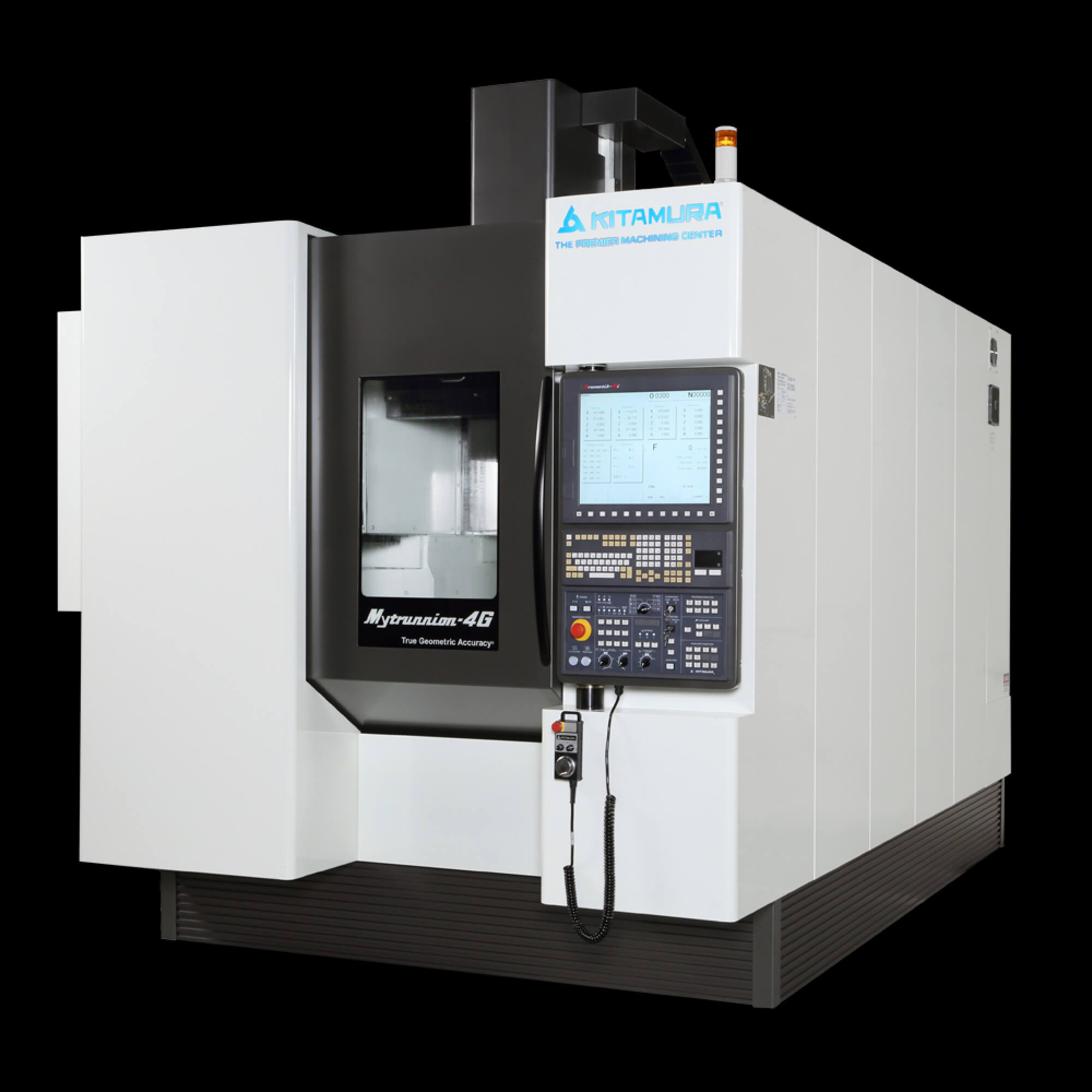

Mytrunnion-4G

5-Axis Machining Center
Specifications
Table Size: 15.7” (400mm) round dia.
Travel (X, Y, Z): 24” x 24” x 19.7”
(610 x 610 x 500mm)
Travel (A, C): -120~+30 deg. /0~360 deg.
Spindle Taper: NST No. 40
Spindle Speed: 40~15,000rpm
Tool Storage Capacity: 60 Pcs. (Opt. 100T)
Tool Change Time (T-T/C-C): 2.2 Sec. /5.8 Sec.
Rapid Feed (X, Y, Z): 1969ipm (50m/min) X & Y, 985ipm (25m/min) Z
Rapid Feed (A, C): 18,000 deg. /min (50rpm)
Power Requirement: 45KVA
Features

• Ideal for ultra-high precision simultaneous 5-axis machining

• Positioning Accuracy: ±0.000079” Full Stroke, Repeatability: ±0.000039”

• Sliding overhead door allows for easy workpiece loading/unloading

• Powerful #40, 15,000rpm, 15HP Direct Drive, Dual Contact Spindle Optional HSK-A63 Spindle Configuration available

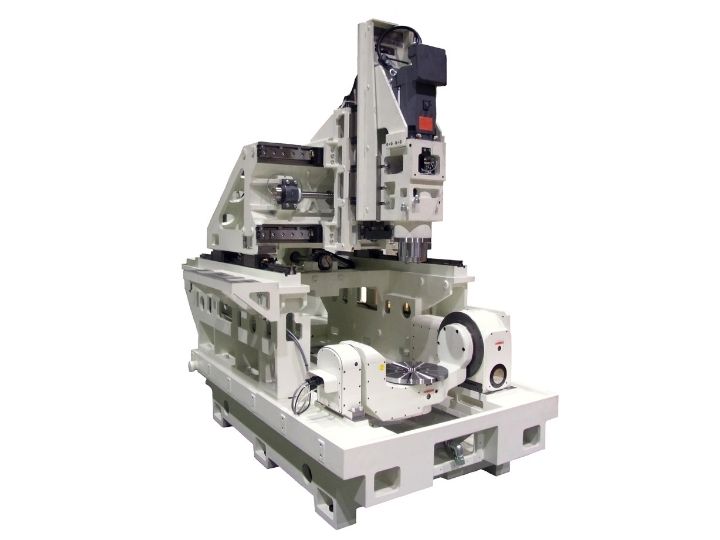

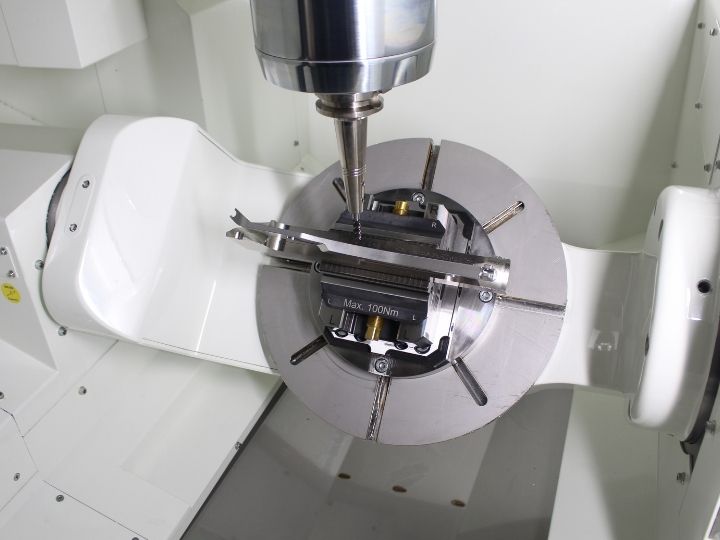

• Highly Rigid, Ultra-High Precision Roller Gear Cam Table in the 4th & 5th Axes

• Expansive 21.7"Dia. x 15.7"H (550 x 400mm) work envelope beats the competition

• Highest grade meehanite cast iron construction for superior vibration absorption and improved surface finishes
