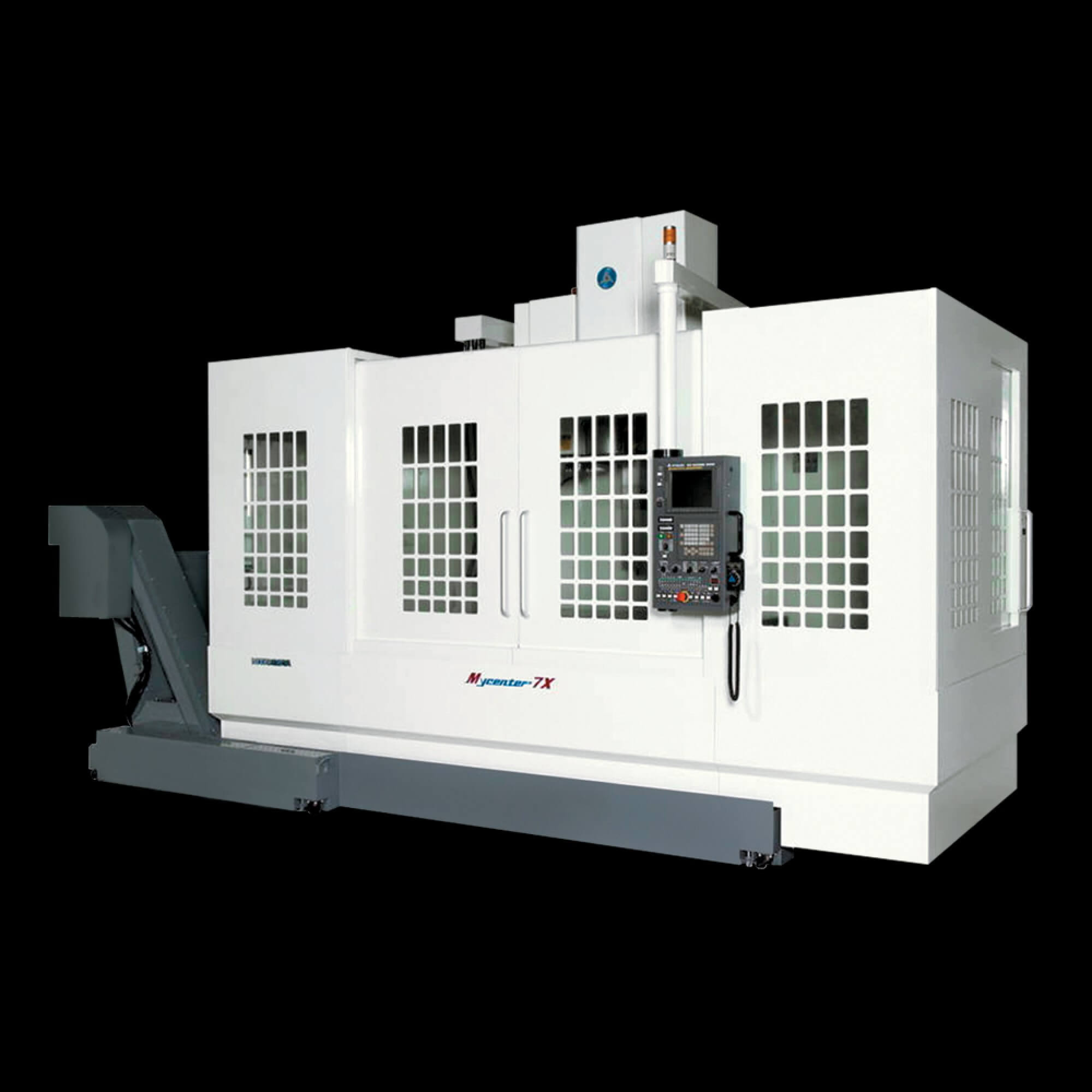

Mycenter-7X#40 Vertical Machining Center
Specifications
| Table Size: | 25.6” x 66.9” (650 x 1,700mm) |
| Travel (X, Y, Z): |
60.2” x 25.6” x 27.0”
(1,530 x 650 x 686mm) |
| Spindle Taper: | NST No. 40, NST No. 50 |
| Spindle Speed: | 20~10,000rpm (40~15,000rpm Opt.) – Gear Drive, 4-Step |
| Tool Storage Capacity: | 30 Pcs. (40, 60 Opt.) |
| Tool Change Time (T-T/C-C): | 2.0 Sec. /6.5 Sec. |
| Rapid Feed (X, Y x Z): | 945ipm (24m/min) x 787.4ipm (20m/min) |
| Power Requirement: | 40KVA |
Features
• Ideal for machining larger size parts and molds
• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
• Rigid Meehanite cast iron construction with solid box ways
• Choice of #40 or #50 taper spindles for maximum machining flexibility
• Standard 30-Tool ATC with 40 or 60 tools as available options
• Flexibility with the ability to add 4th/5th axis in the field
• Powerful geared spindles delivery high torque and high speeds for maximum machining flexibility
