Specifications
| Table Size: | 12” x 12” (305 x 305mm) |
| Travel (X, Y, Z): |
18.1” x 20.1” x 22.0” (460 x 510 x 560mm) |
| Spindle Taper: | NST No. 40 |
| Spindle Speed: | 40~15,000rpm **20,000, 30,000 Option |
| Tool Storage Capacity: | 50 Pcs.- Field Expandable Option to 100/150/200 Tools |
|
Tool Change Time (T-T/C-C): |
1.3 Sec. /2.5 Sec. |
|
Rapid Feed (X,Y,Z) Rapid Feed (B) |
2,362ipm (60m/min) 54,000deg./min. (150rpm) |
| Power Requirement: | 45KVA |
Features
• Drastically reduces set-up times for highly complex parts requiring multiple operations
• Amazingly small footprint saves on valuable floor space
• Positioning Accuracy: ±0.000039”/Full Stroke, Repeatability: ±0.00002”
• Ultra high speed rapid feed rates of 2,362ipm
• High Speed 4th axis rotary table, Integral Motor Driven 54,000deg/min (150rpm) rapids
• 2-Station APC is automation ready and field expandable up to 8 pallets for unmanned operation potential

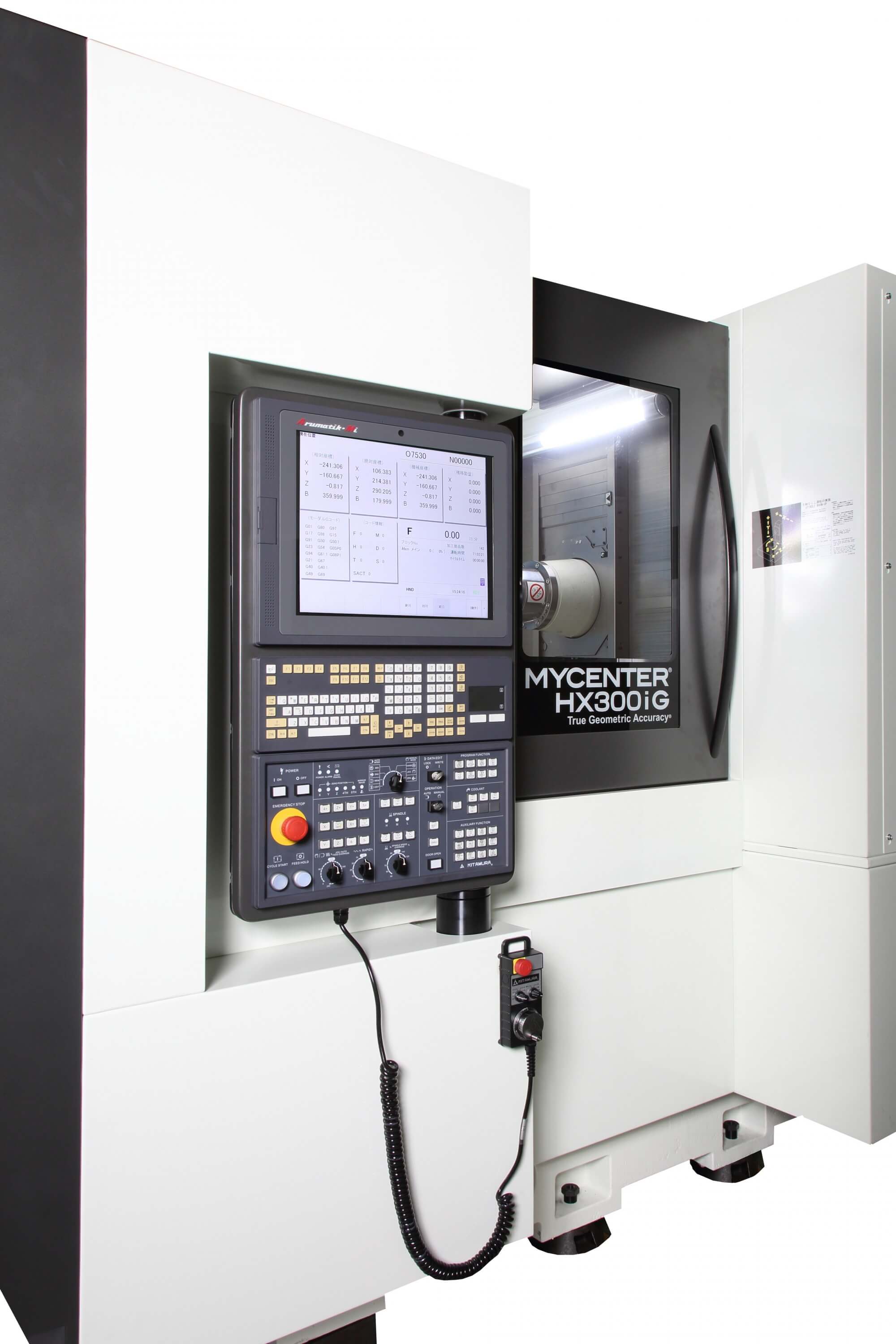

• High power, high-speed processing Arumatik-Mi CNC with 67 million pulse encoder technology
• Powerful 15,000rpm, 30HP, dual contact spindle - Optional 20,000rpm and 30,000rpm spindle speeds Available

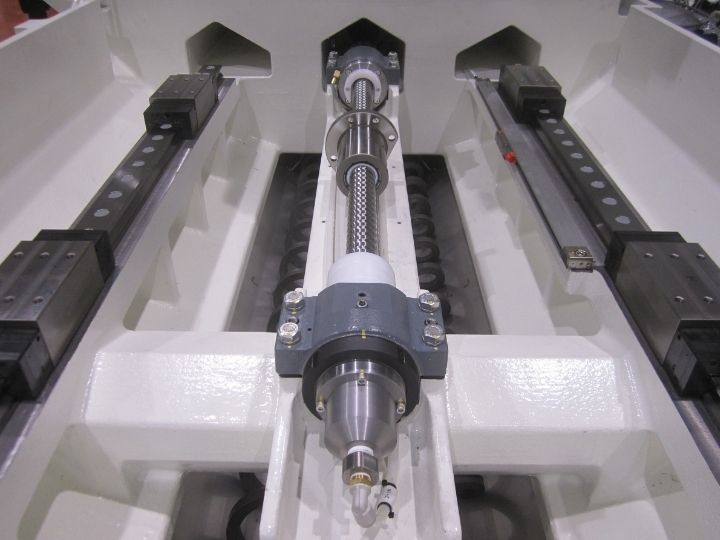

• Ballscrew Cooling and Linear Scale Feedback in all axes
• Ability to add 400mm tables in the field as an option
