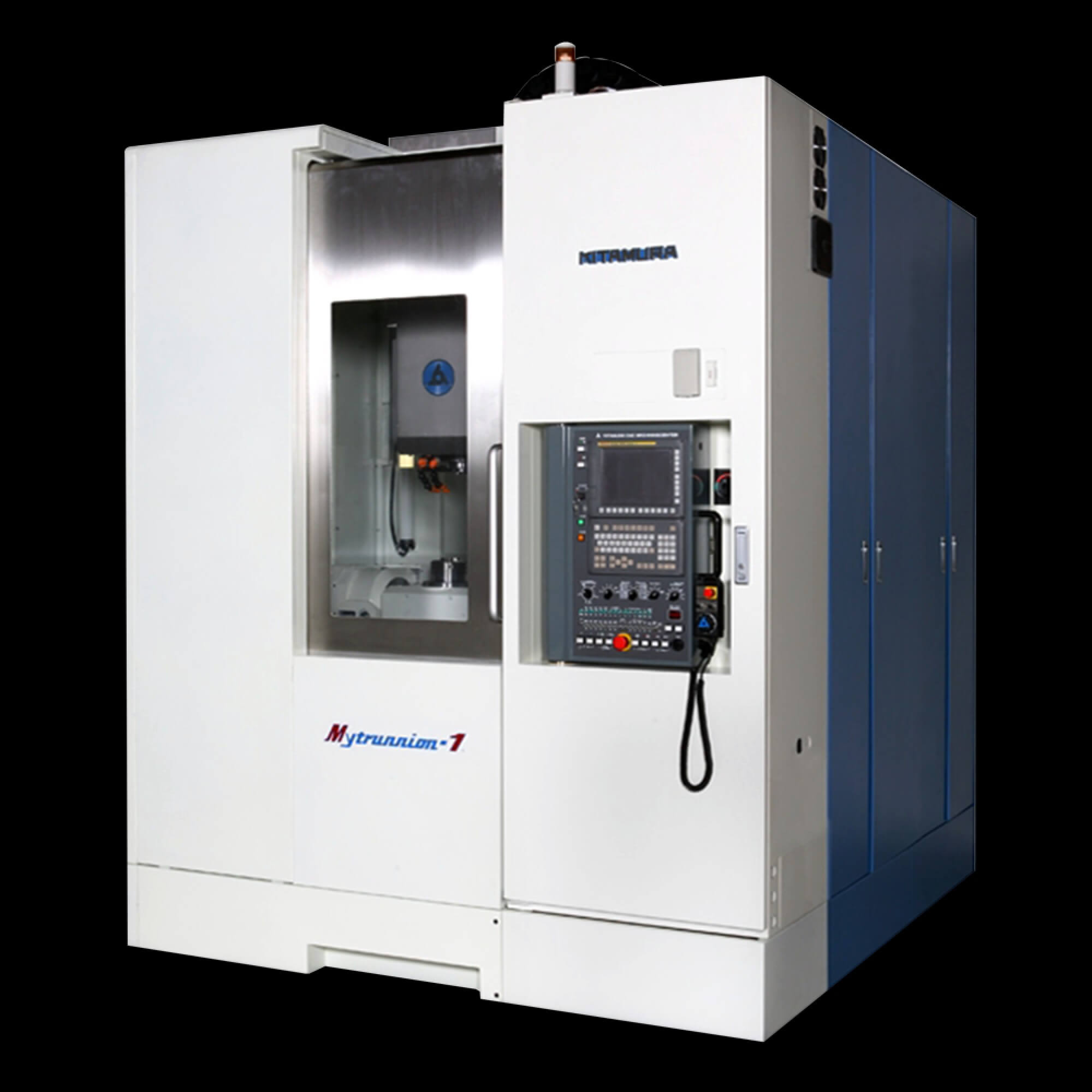

Mytrunnion-1 5-Axis Machining Center
Specifications
| Table Size: |
4.72”
round (120mm dia.) |
| Travel (X, Y, Z): |
12.8”
x 20.1” x 18.1” (325 x 510 x 460mm) |
| Travel (A, C): | -110~+30 deg. /0~360 deg. |
| Spindle Taper: | NST No. 30 |
| Spindle Speed: | 50~15,000rpm (300~30,000rpm Opt.) |
| Tool Storage Capacity: | 60 Pcs. |
|
Tool
Change Time (T-T/C-C): |
1.1 Sec. /2.8 Sec. |
| Rapid Feed (X, Y, Z): | 1969ipm (50m/min) X & Y, 1,417ipm (36m/min) Z |
| Rapid Feed (A, C): | 7,992 deg. /min, 360,000 deg. /min |
| Power Requirement: | 35KVA |
Features
• Ideal for
ultra-high precision simultaneous 5-axis machining
• Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
• High speed, 15,000rpm dual contact spindle
• Small & compact, saves on valuable floor space
• Optional pallet change systems available
• Linear scale feedback on all axes
• Highest grade meehanite cast iron construction with solid box ways
